Exl Systems

Exl systems carbonate and cool soft drinks within post-mix dispense environments. They are designed to maintain stable carbonation levels and controlled product temperature during service, supporting consistent drink quality at the point of dispense.

Speak to an expert Shop

Key features

UK-manufactured soft drink carbonation and cooling systems

Excel systems are designed and manufactured in the UK, supporting controlled production standards and long-term operational reliability in post-mix environments.

Available in ambient carbonator, integral cooler carbonator, and remote configurations

Excel is available in ambient carbonator, integral cooler carbonator, and remote configurations, enabling system designers to align carbonation and cooling capacity with site layout and throughput requirements.

Available in air-cooled and integral formats

Excel systems are offered in both air-cooled and integral formats, providing flexibility in installation and ventilation conditions across varied hospitality environments.

UK-manufactured soft drink carbonation and cooling systems

Excel systems are designed and manufactured in the UK, supporting controlled production standards and long-term operational reliability in post-mix environments.

Available in ambient carbonator, integral cooler carbonator, and remote configurations

Available in air-cooled and integral formats

Excel systems are offered in both air-cooled and integral formats, providing flexibility in installation and ventilation conditions across varied hospitality environments.

Compare our products

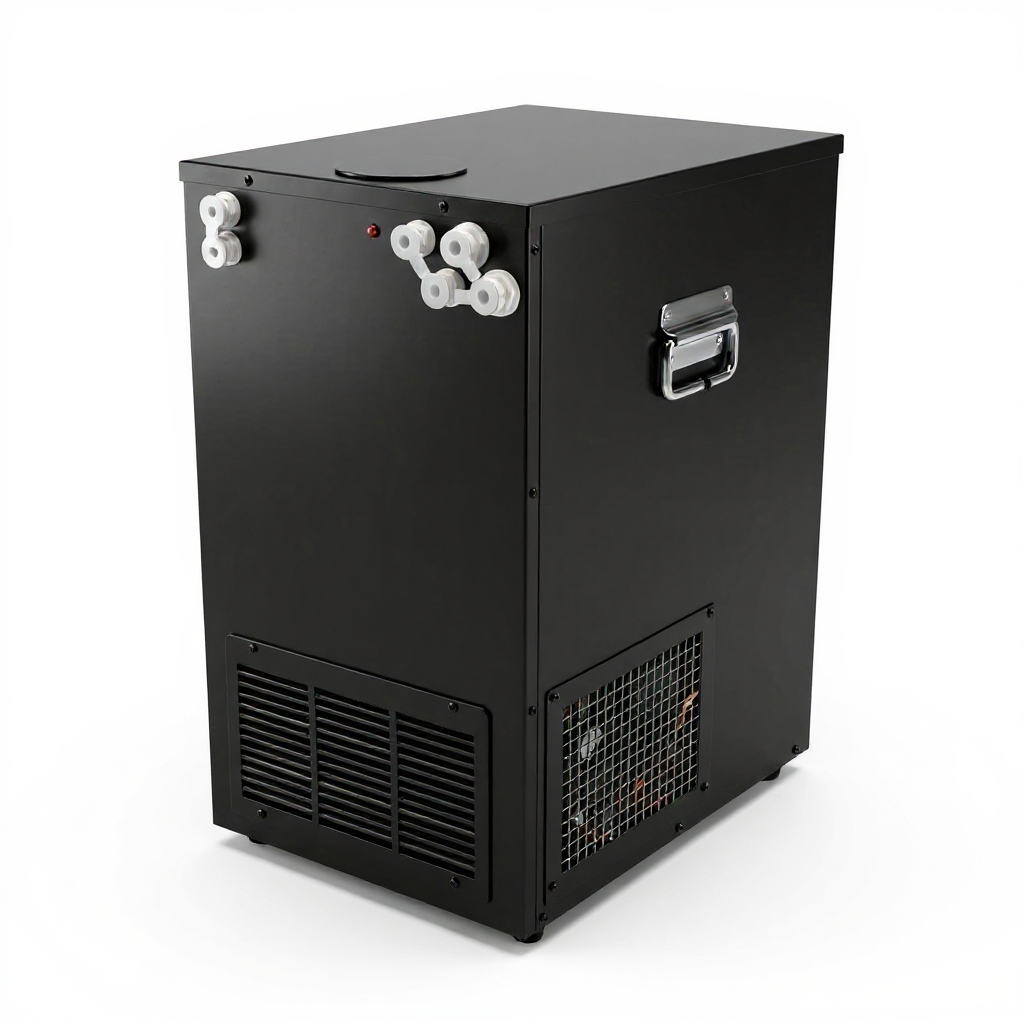

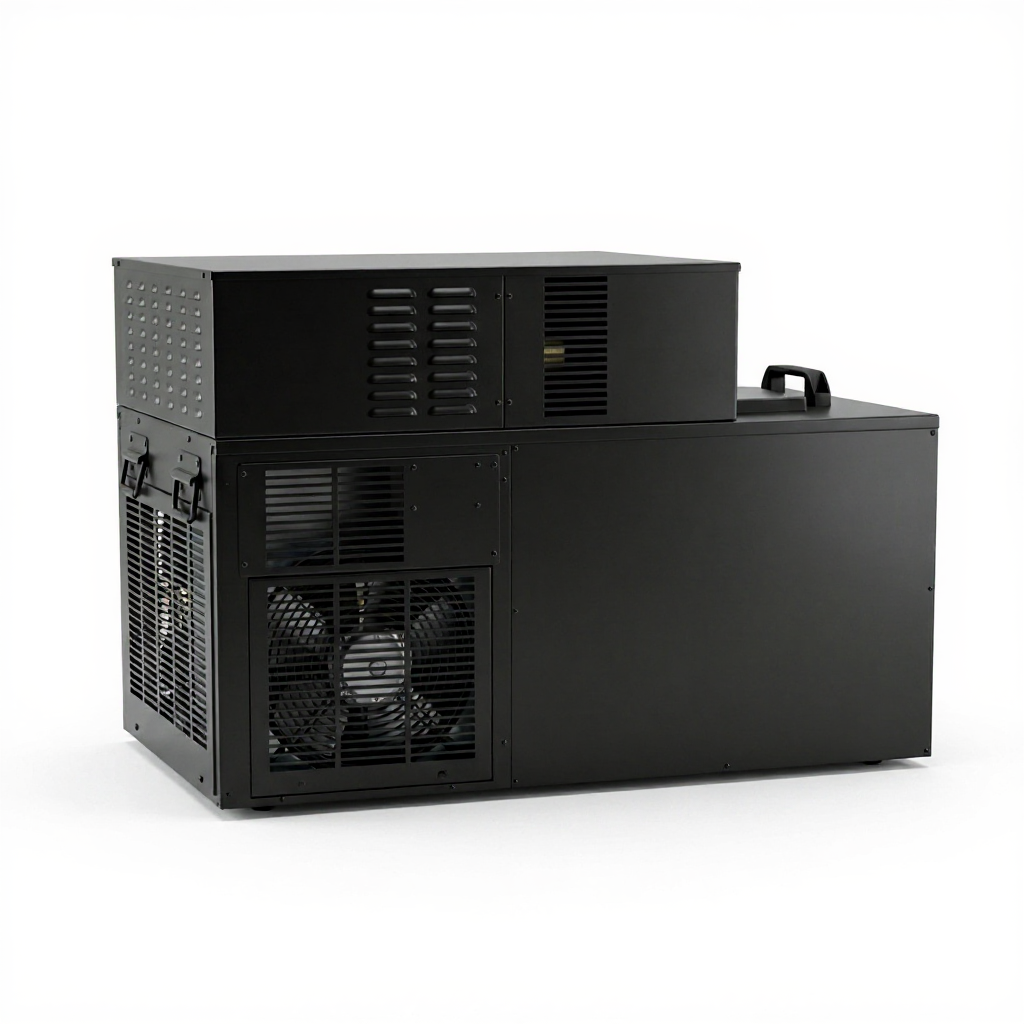

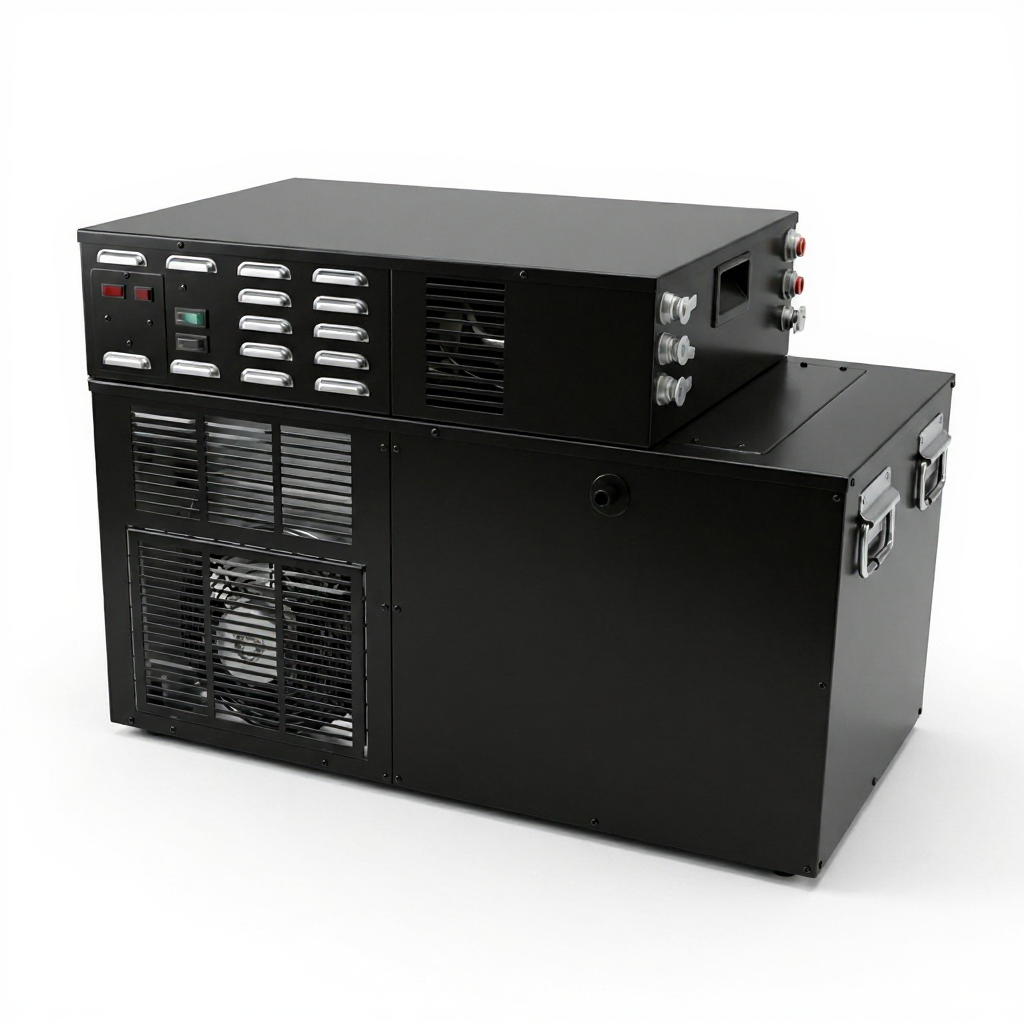

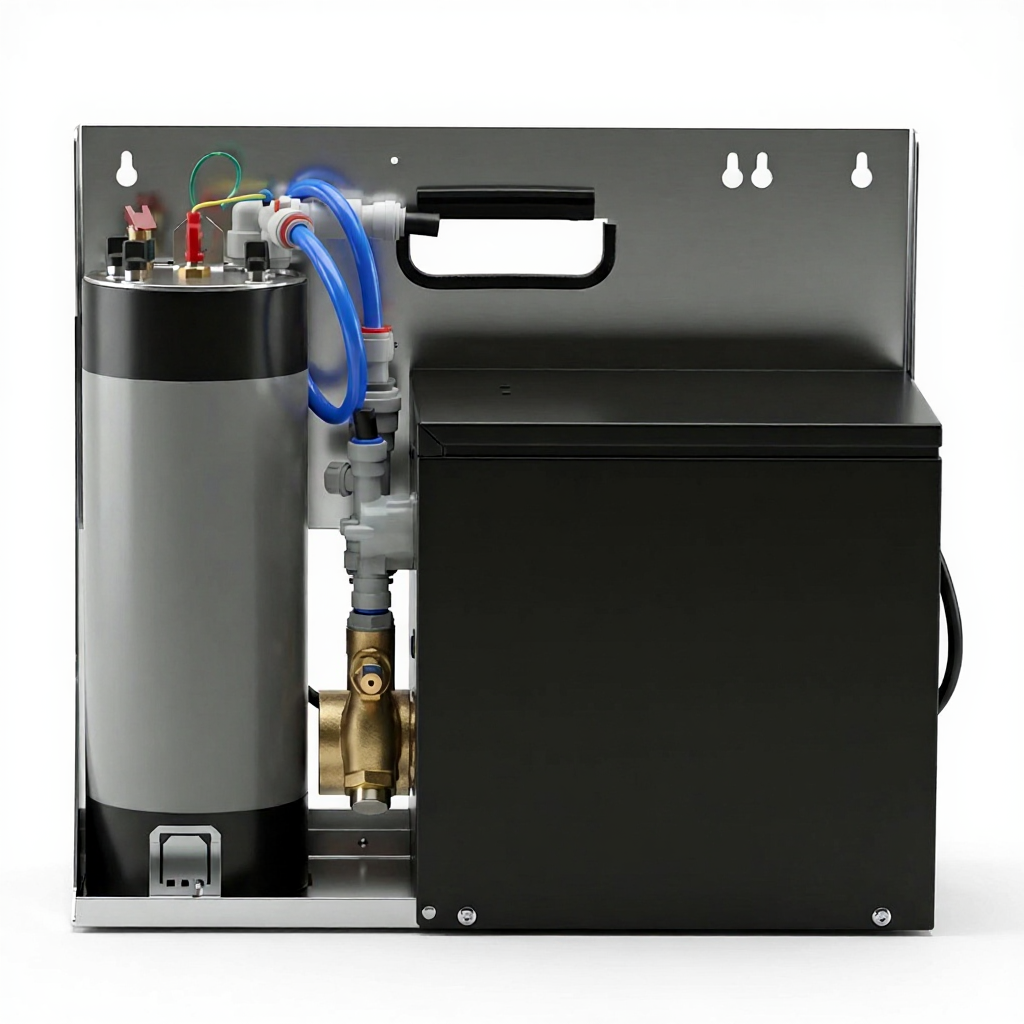

	EXL700H - Remote Carbonator	EXL126H - Remote Water-Cooled Carbonator / Cooler	EXL125H - Remote Air-Cooled Carbonator / Cooler	EXL96H - Remote Water-Cooled Carbonator / Cooler	EXL95H - Remote Air-Cooled Carbonator / Cooler	EXLC70 - Pre-Cooled Carbonator	EXL170 - Ambient Carbonator	EXL170S - Still Boost Carbonator
Output p/hr	200L	200L	130L	130L	130L	180L	180L	180L
Dimensions	602 x 366 x 450 mm	600 x 900 x 640 mm	600 x 900 x 525 mm	520 x 780 x 512 mm	520 x 780 x 455 mm	380 x 430 x 195 mm	380 x 430 x 195 mm	380 x 430 x 195 mm
Dry Weight	35 Kg	82 Kg	76 Kg	65 Kg	59 Kg	11 Kg	11 Kg	11 Kg
Compressor	6cc	12.1cc	12.1cc	12.1cc	12.1cc	N/A	N/A	N/A
Electrical	220-240Vac / 50Hz	230Vac / 50Hz 8A	230Vac / 50Hz 8A	230Vac / 50Hz 10A	230Vac / 50Hz 10A	230Vac / 50Hz 2.3A	230Vac / 50Hz 2.3A	230Vac / 50Hz 2.3A
Ice Bank	7 Kg	25 Kg	25 Kg	9 Kg	9 Kg	N/A	N/A	N/A
Water Bath Capacity	22.5L	65L	65L	40L	40L	N/A	N/A	N/A
SKU	EXL700H	EXL126H	EXL125H	EXL96HX / EXL96HC	EXL95HX / EXL96HC	EXLC70	EXL170	EXL170S
Thermostat	Mechanical / Digital	Mechanical / Digital	Mechanical / Digital	Mechanical	Mechanical	N/A	N/A	N/A
Coils	N/A	8 x 2m	8 x 2m	No Coils / 6 x 2m	No Coils / 6 x 2m	No Coils / 6 x 2m	No Coils / 6 x 2m	8 x 2m
Pump	Rotary Vane	Rotary Vane	Rotary Vane	Rotary Vane / Mag Drive	Rotary Vane / Mag Drive	Rotary Vane / Mag Drive	Rotary Vane / Mag Drive	Rotary Vane
Variations	–	–	–	Non-carbonated / Carbonated	Non-carbonated / Carbonated	–	–	–

Excel

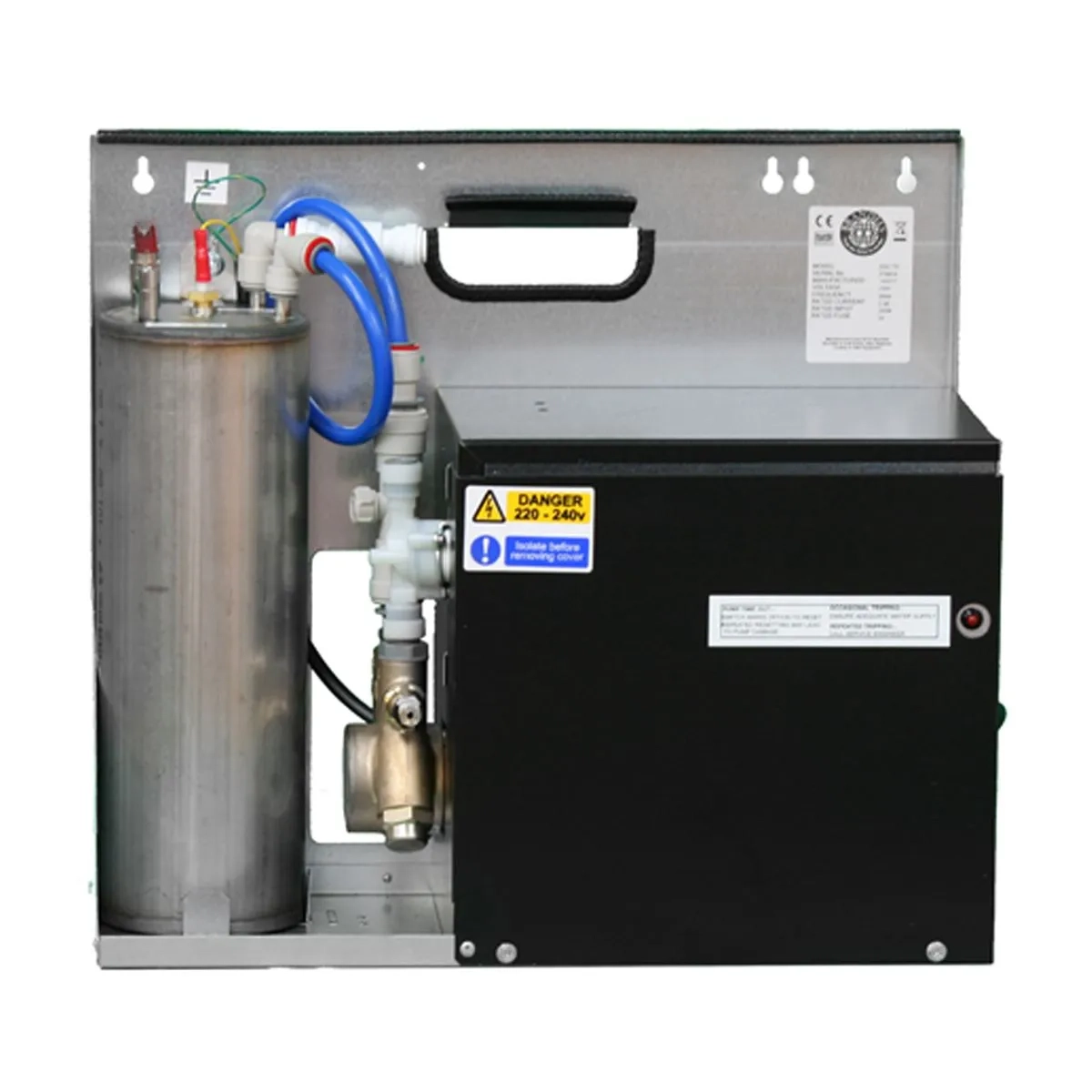

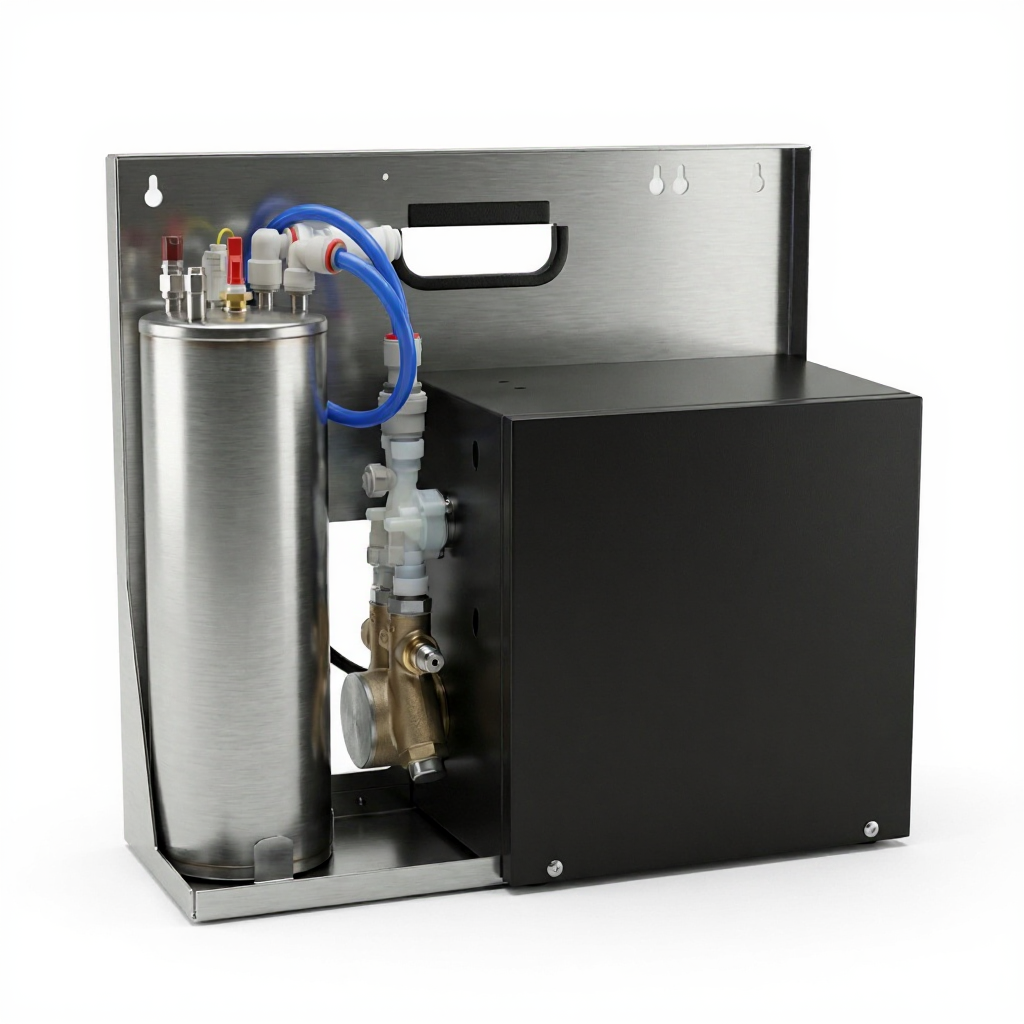

EXL170

High Capacity Carbonator

180 litres per hour

Key Features

High-capacity carbonation output
Ambient carbonator configuration
Suitable for integrated post-mix systems

Designed for Controlled Carbonation & Cooling

In environments where product consistency directly affects customer experience and brand standards, stable carbonation levels and controlled cooling are critical. Excel systems are designed to support balanced performance across ambient carbonator, integral cooler, and remote configurations.

This flexibility allows installers and operators to align carbonation capacity and cooling output with expected throughput, site layout, and service demand.

Ready to find out more?

Excel is typically specified as part of a wider post-mix or soft drinks system design, rather than purchased individually.

Booth supports system selection and configuration through approved distributor and installer partners.

Discuss Excel as part of a planned soft drinks installation or refurbishment with Booth or an approved partner.
